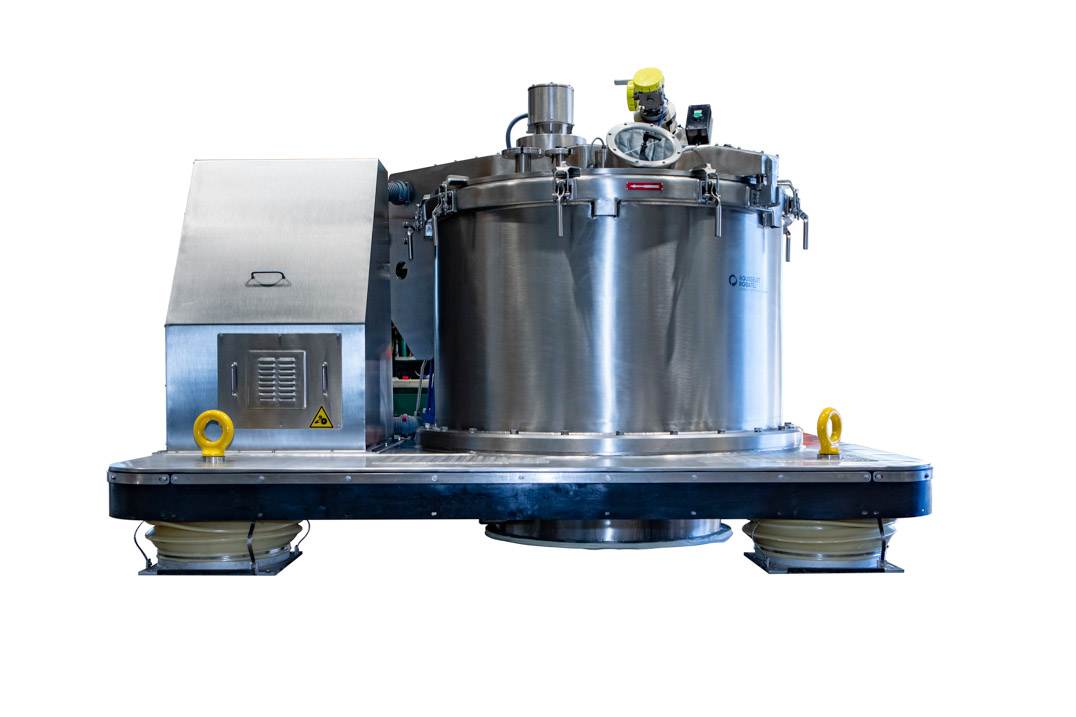

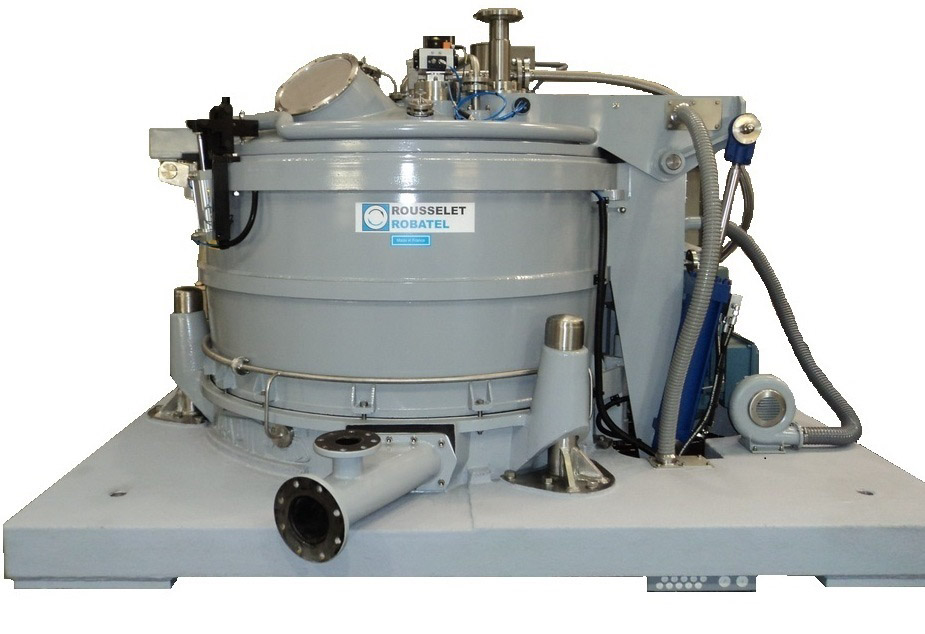

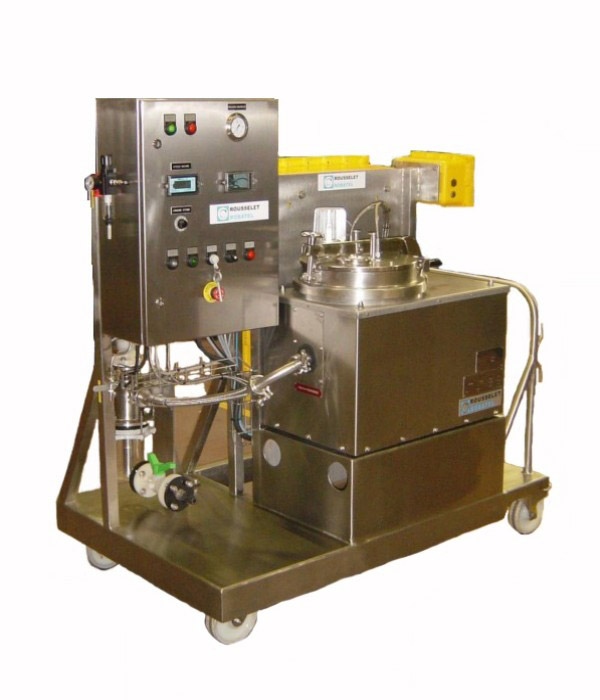

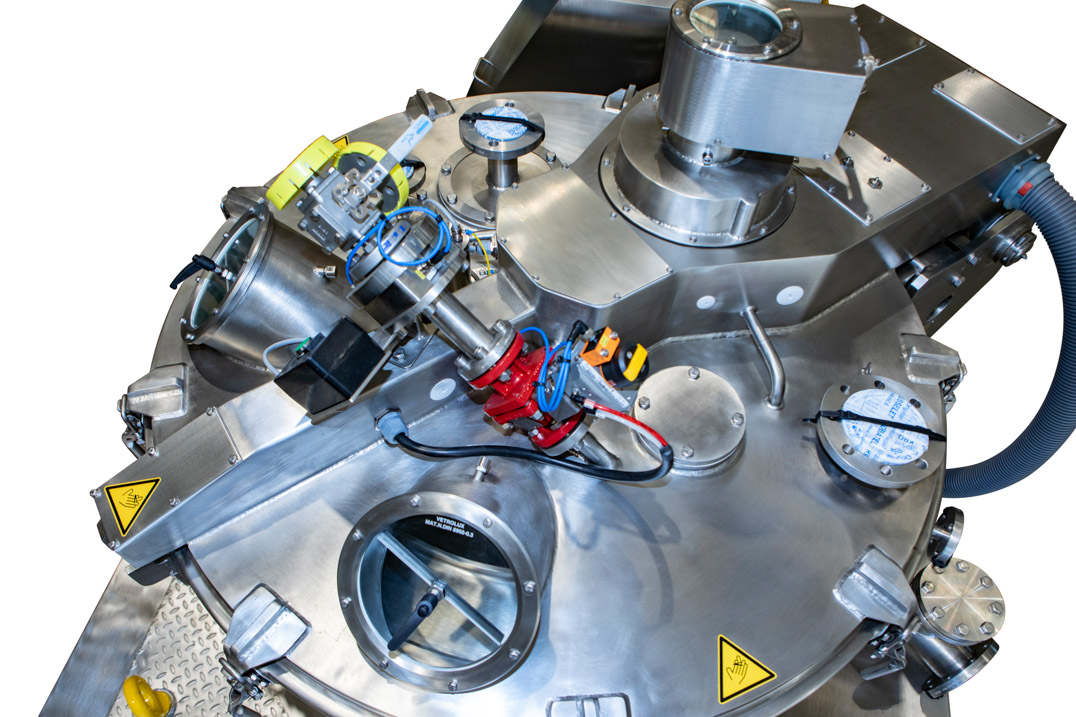

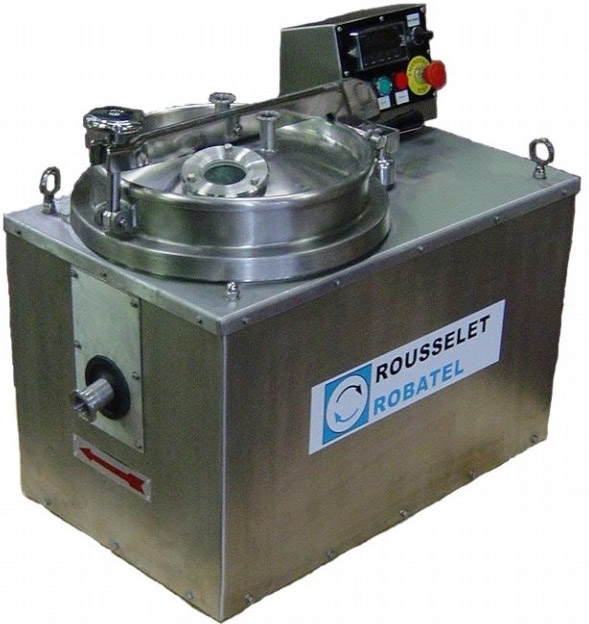

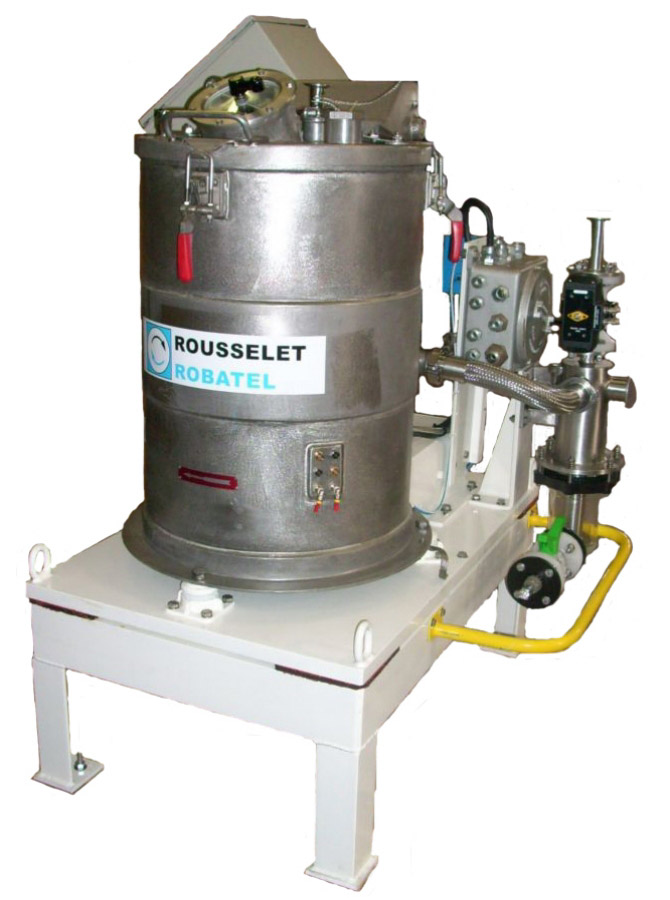

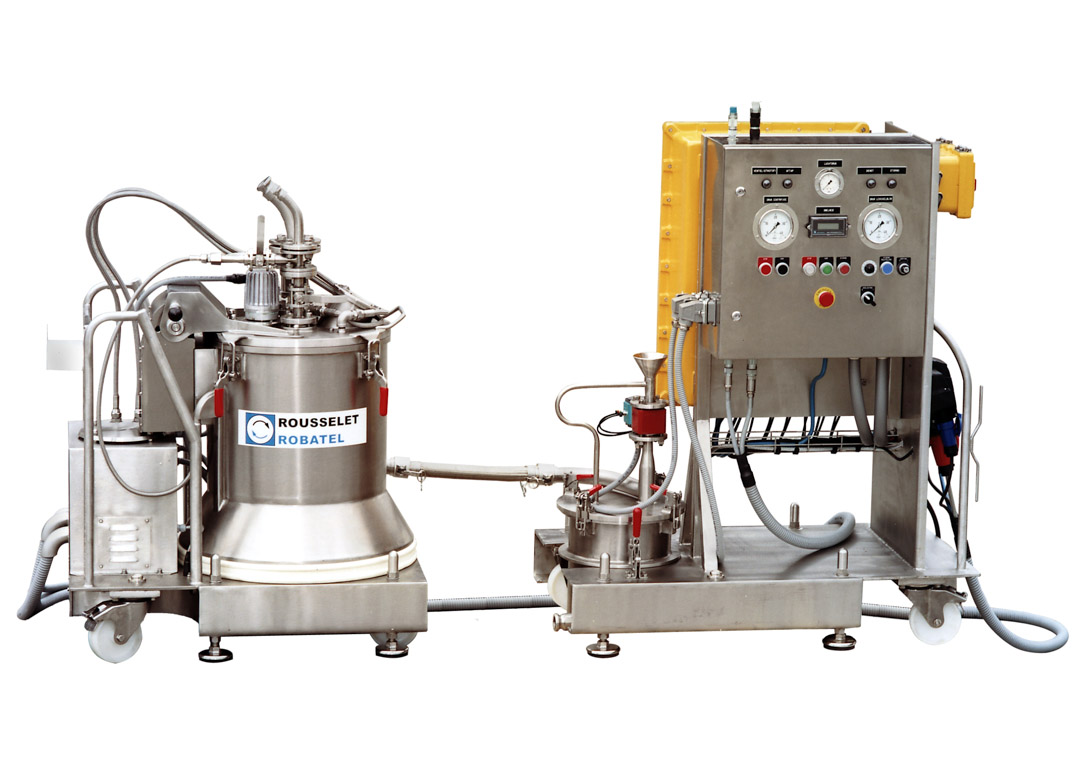

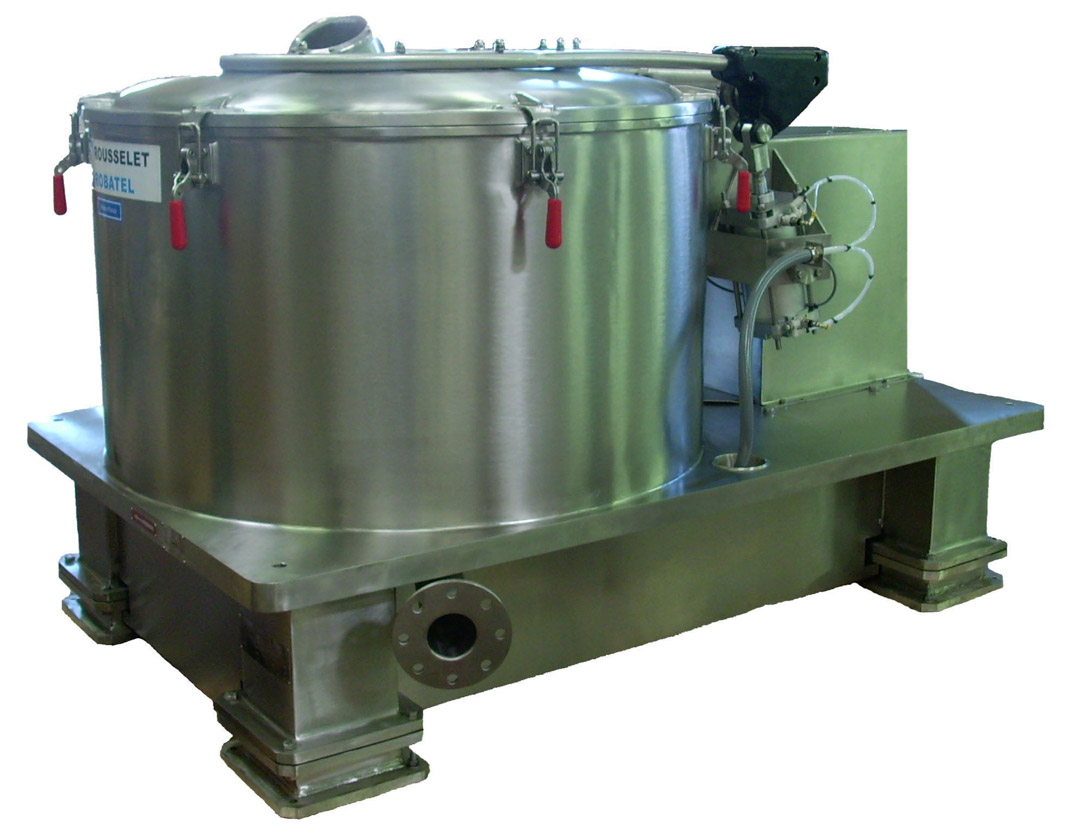

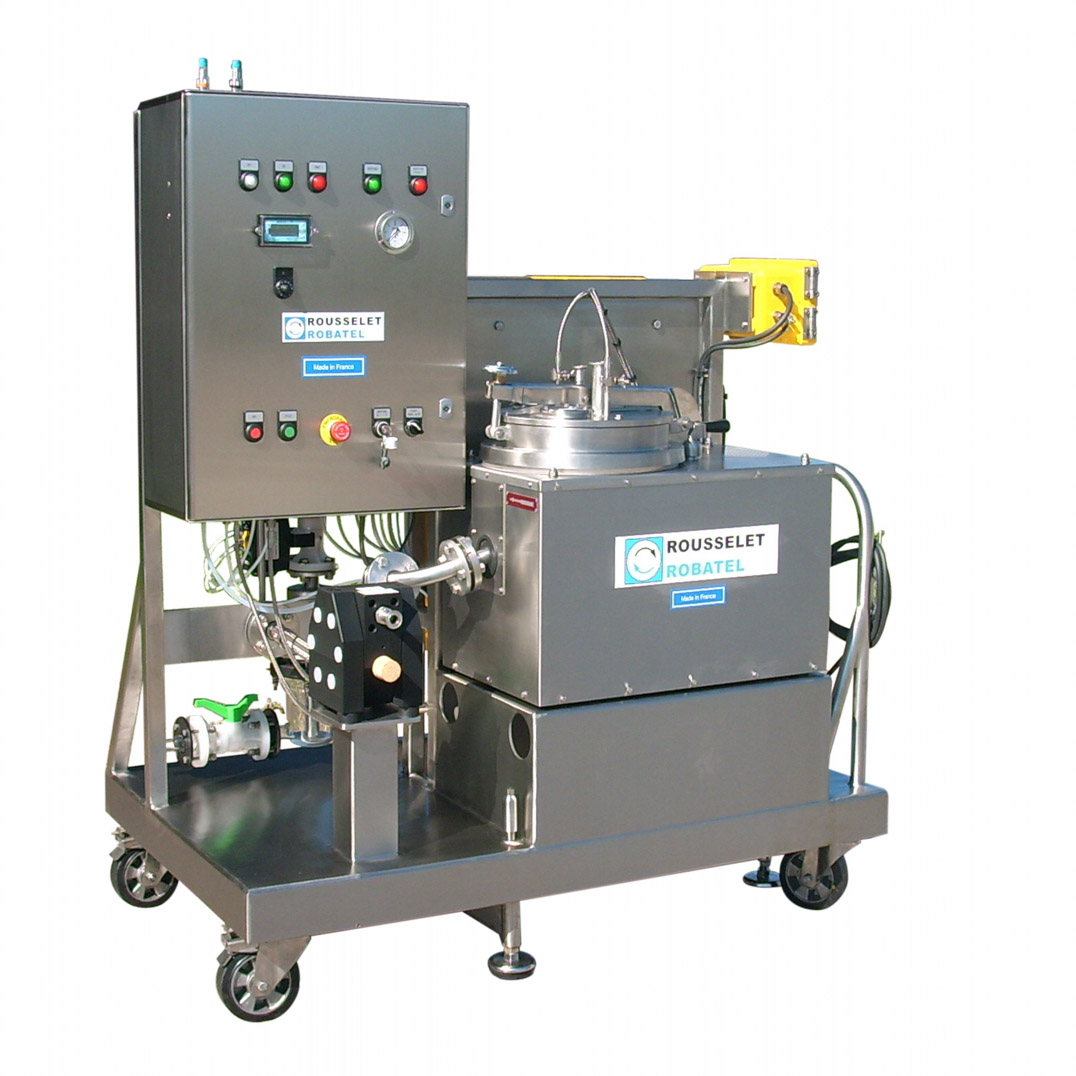

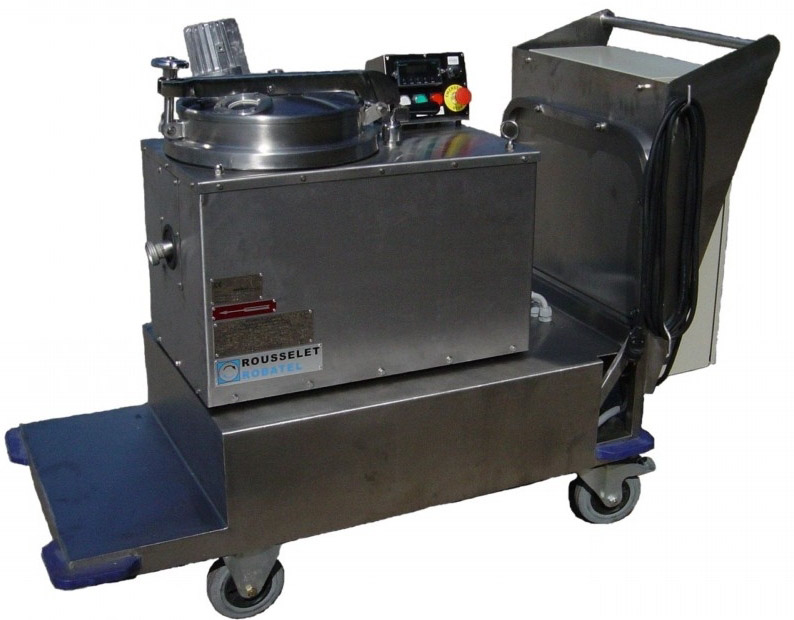

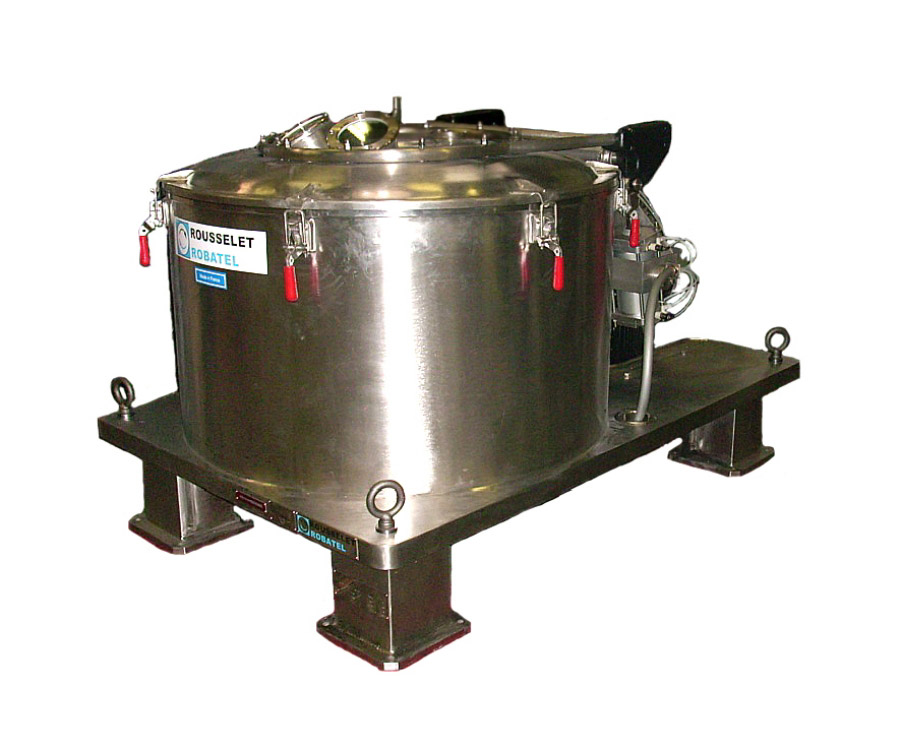

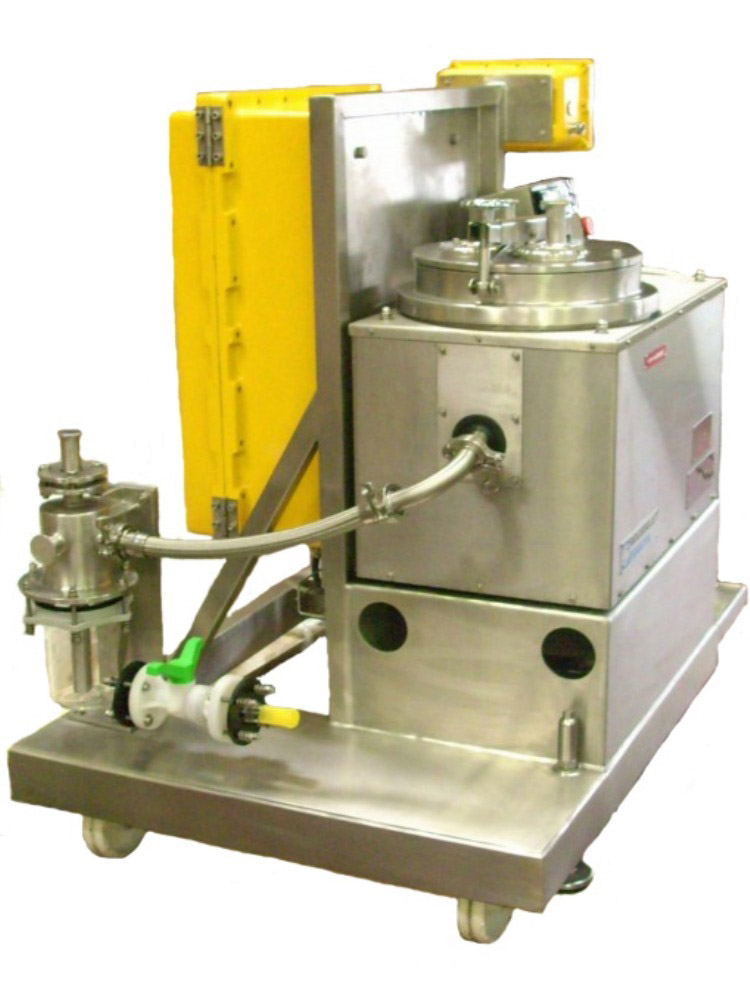

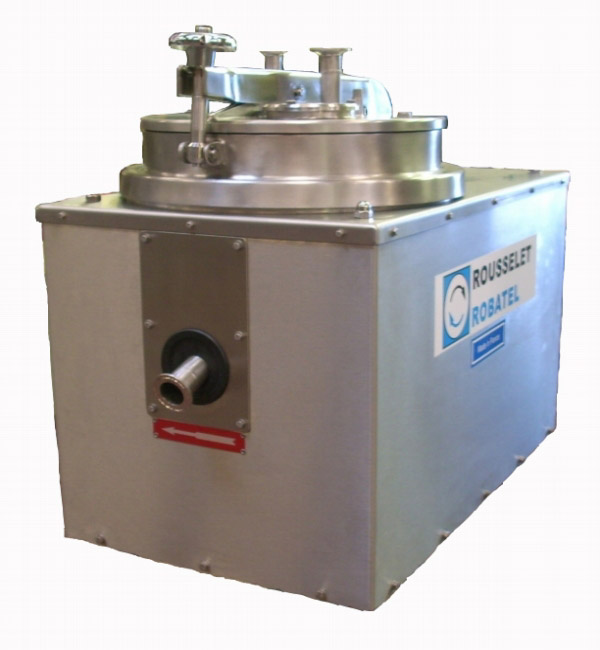

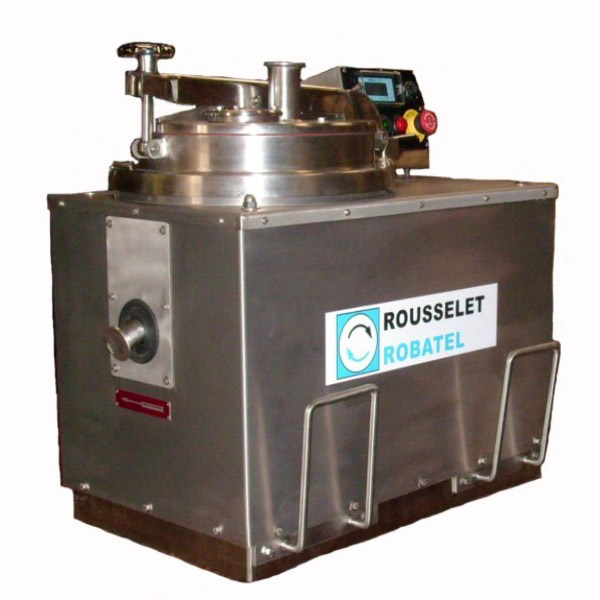

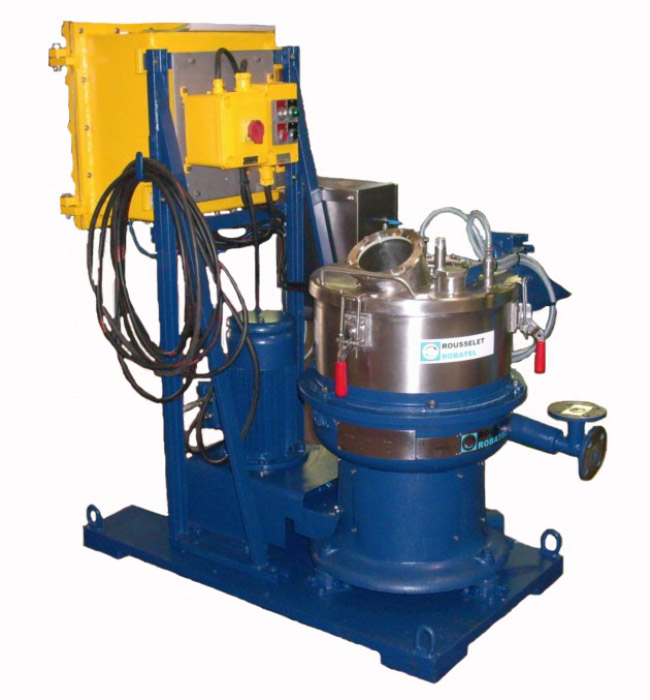

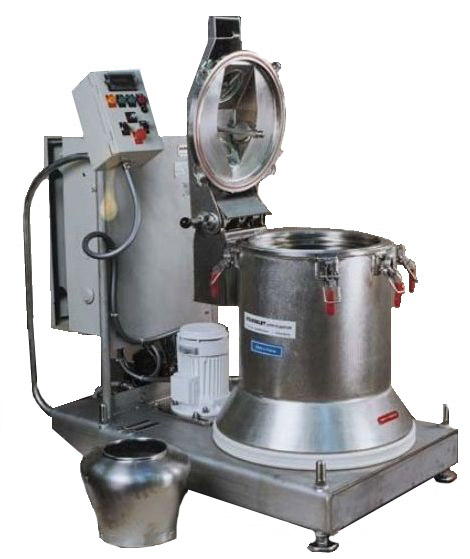

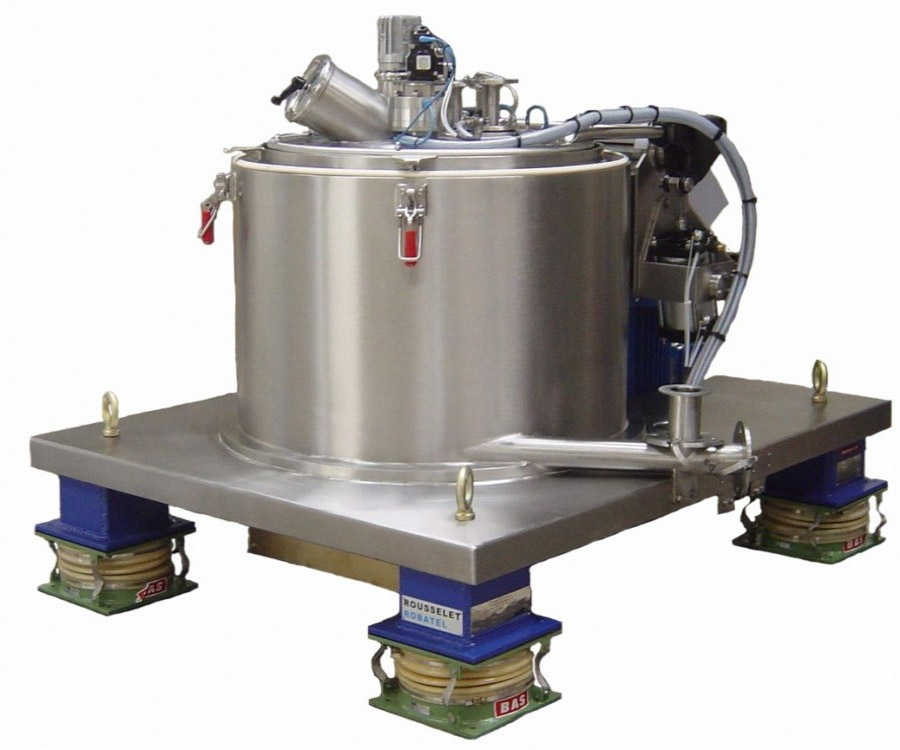

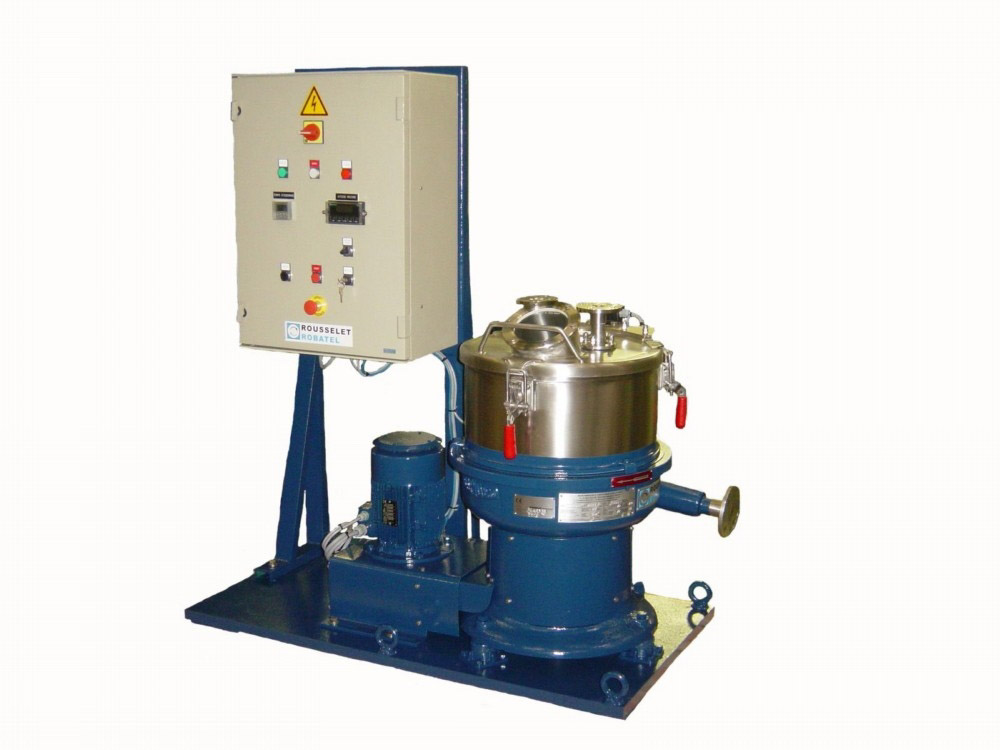

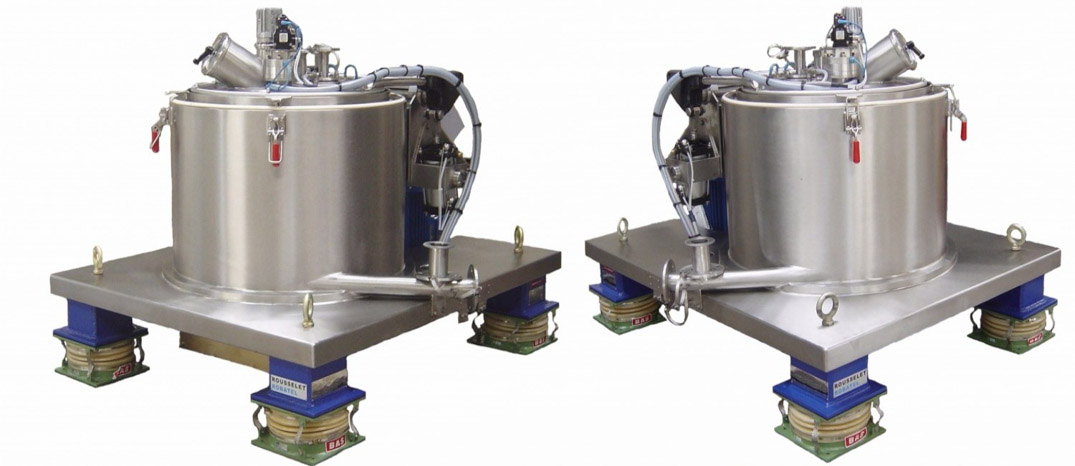

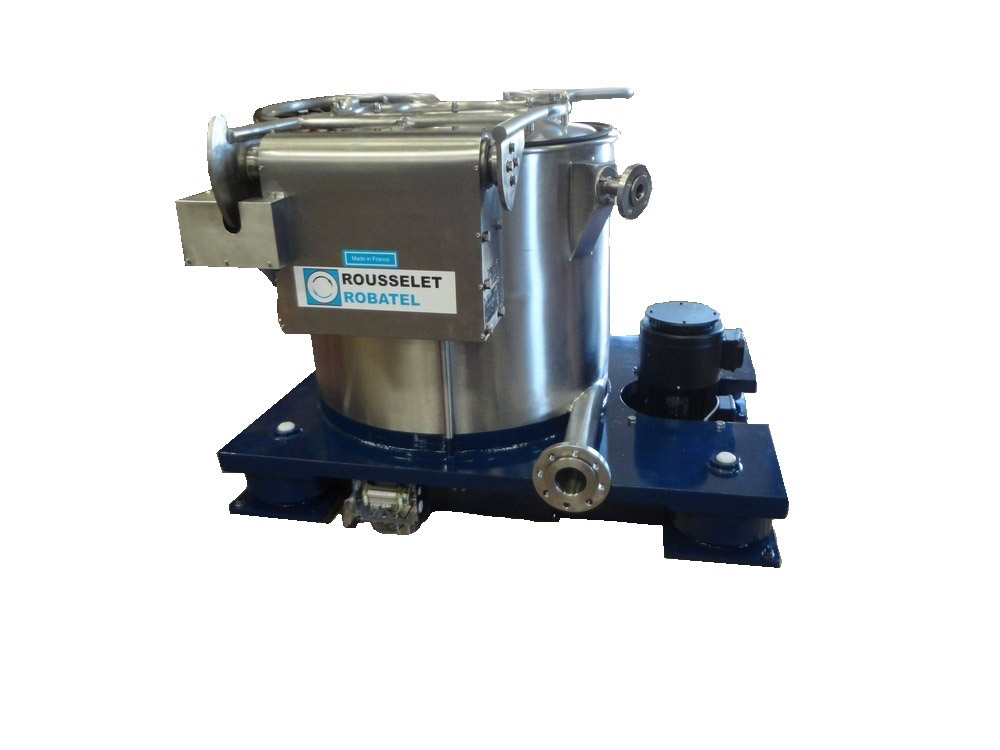

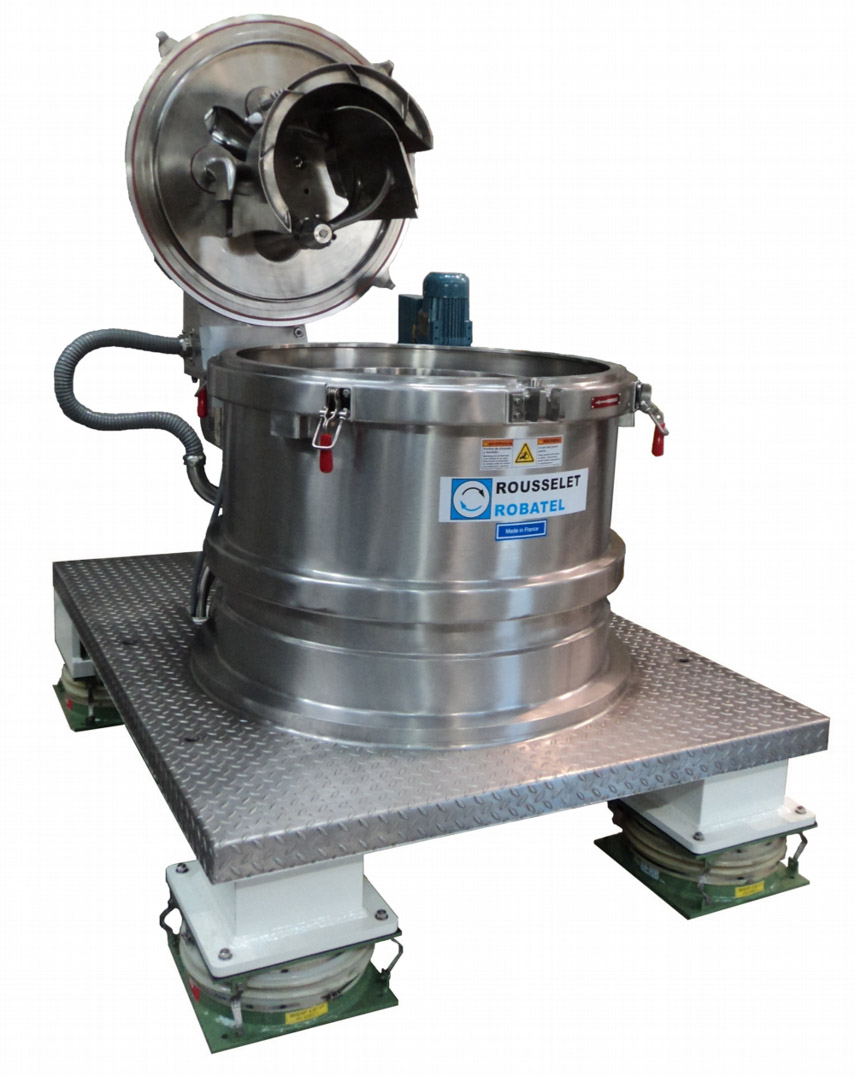

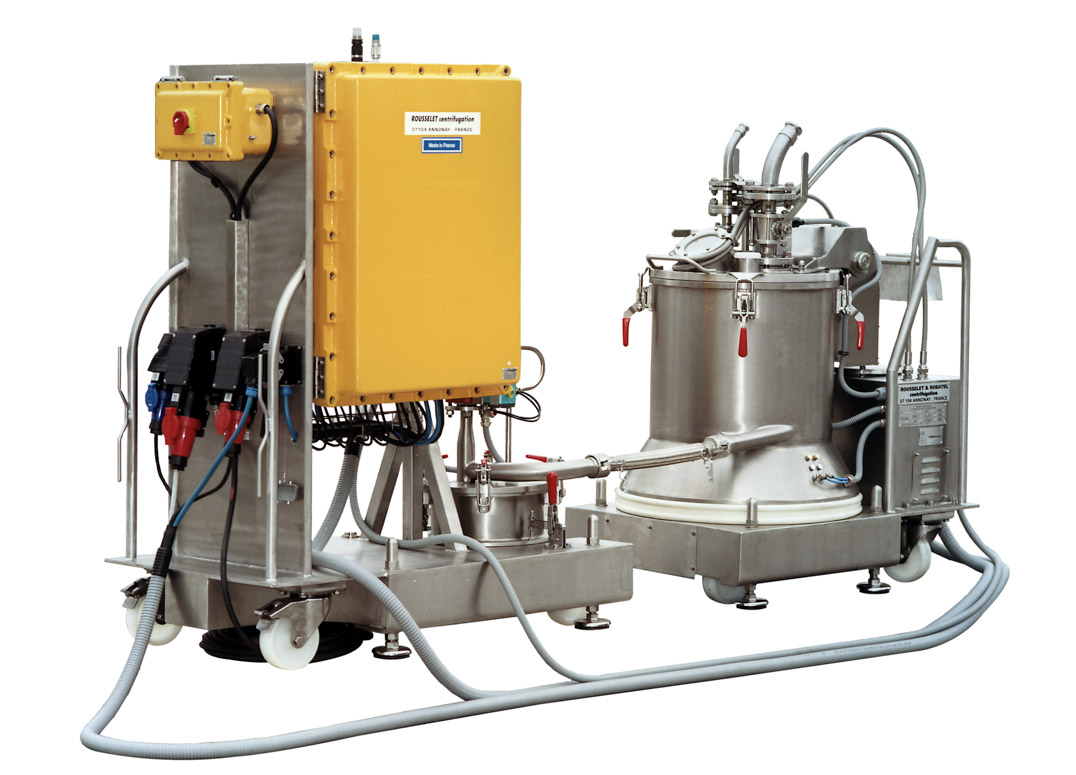

Top-discharge vertical centrifuge

Centrifuge | Separation solid-liquid | Group: RC



  Characteristics

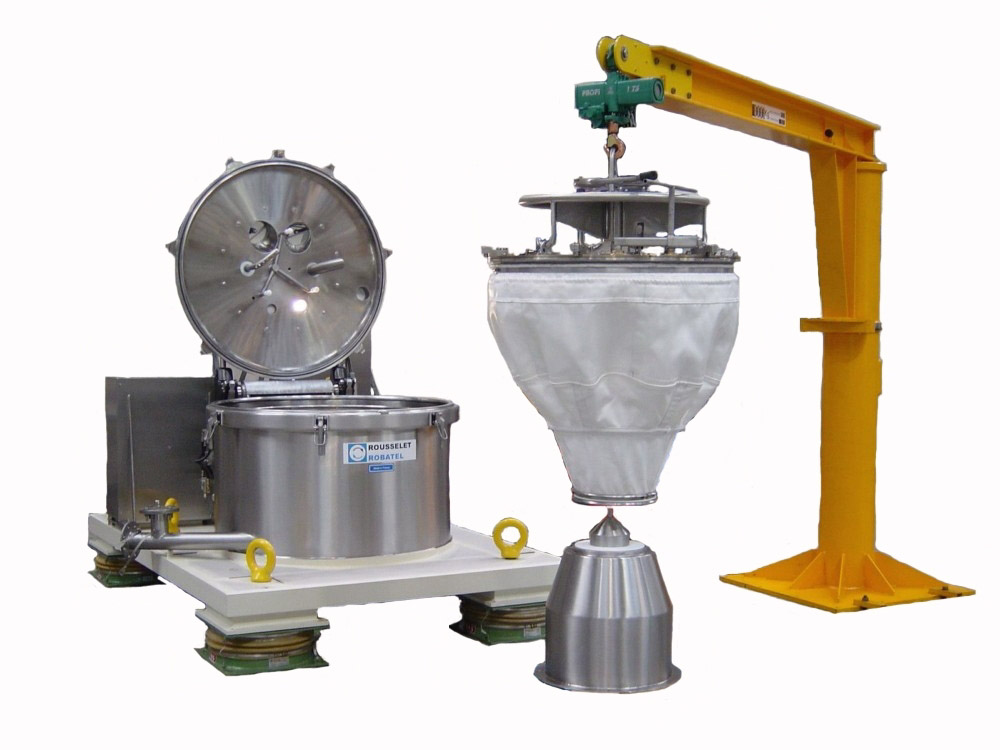

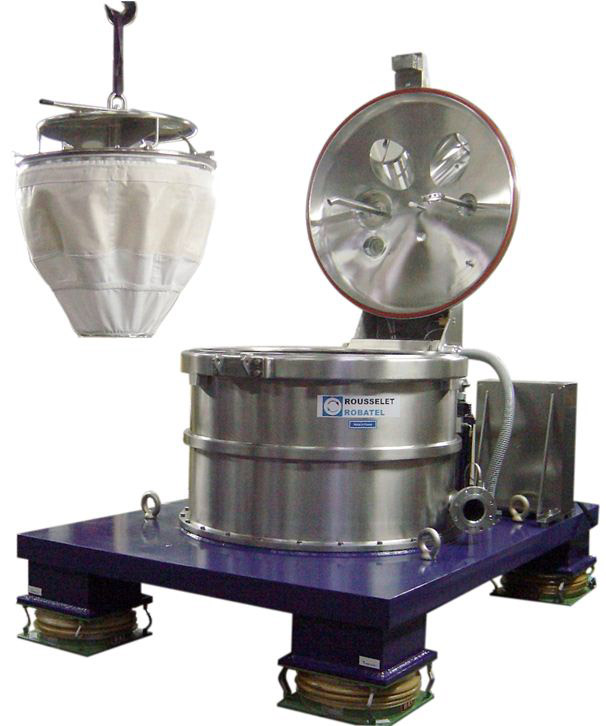

  • "Cake" unloading by removable bag.
  • Manual or semi-automatic cycle control.
  • Floor or floor-mounted installation possible.

  Performance

  • Interchangeable elements.
  • Possibility of testing different solutions (filtration, decantation) for liquid/solid separation.

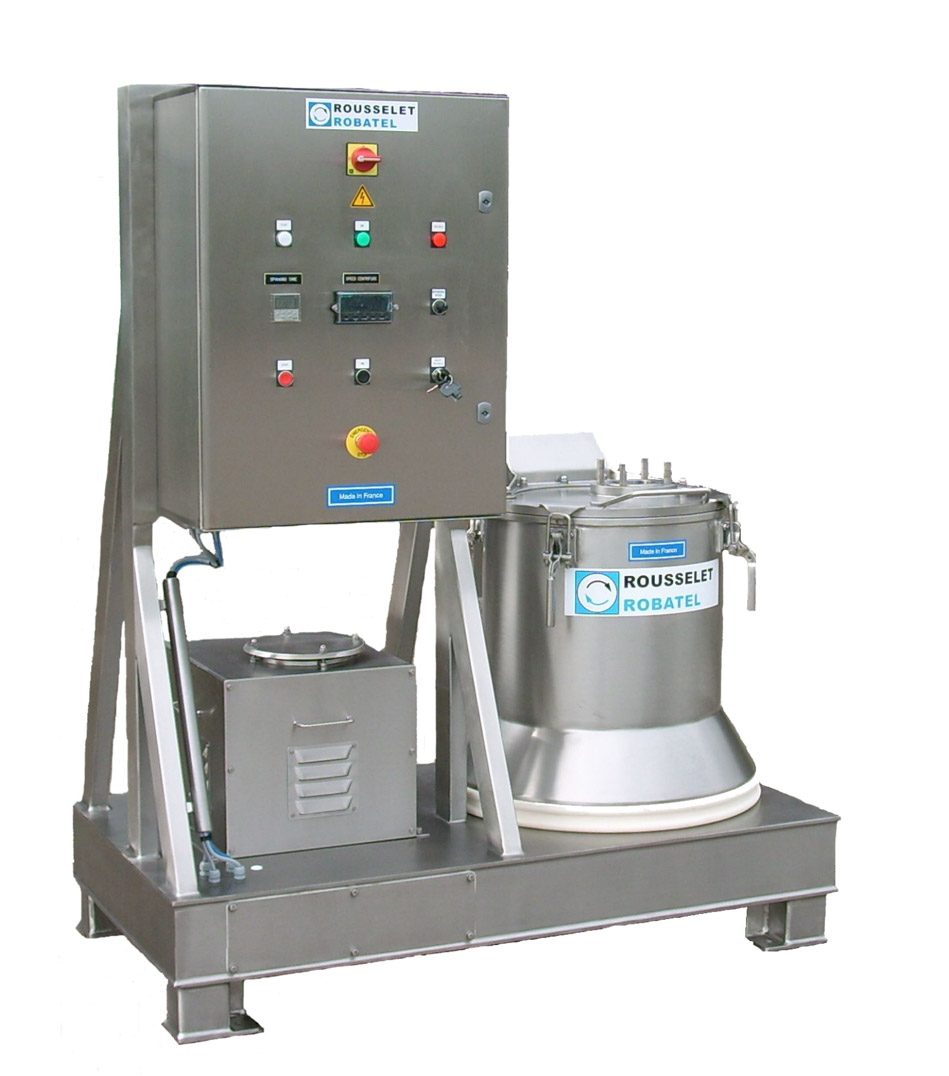

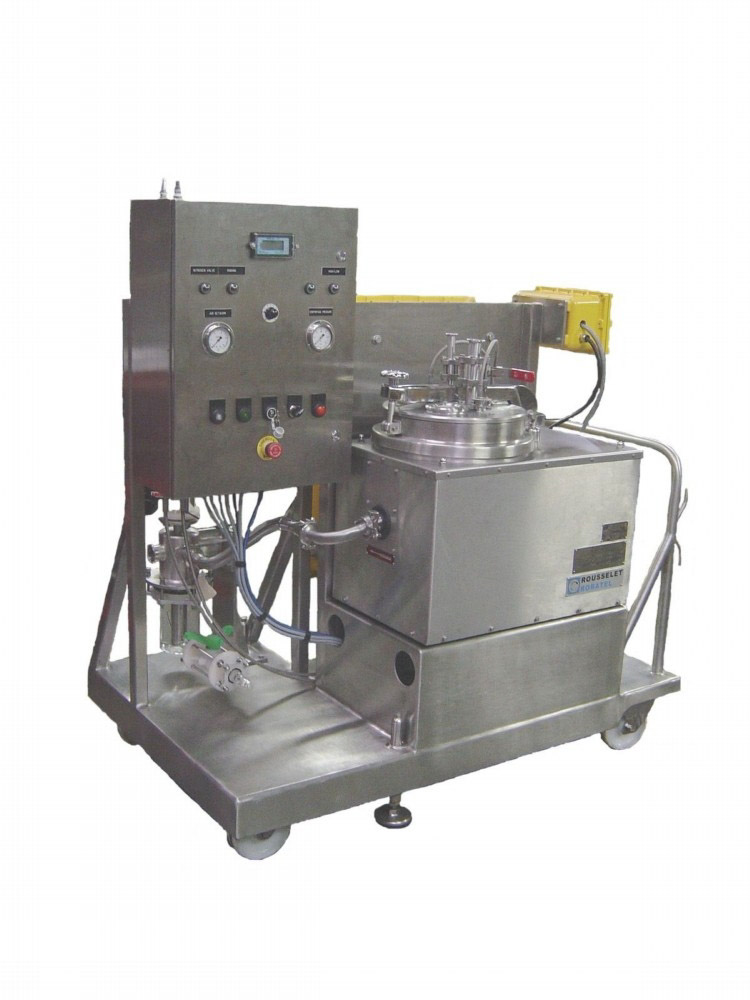

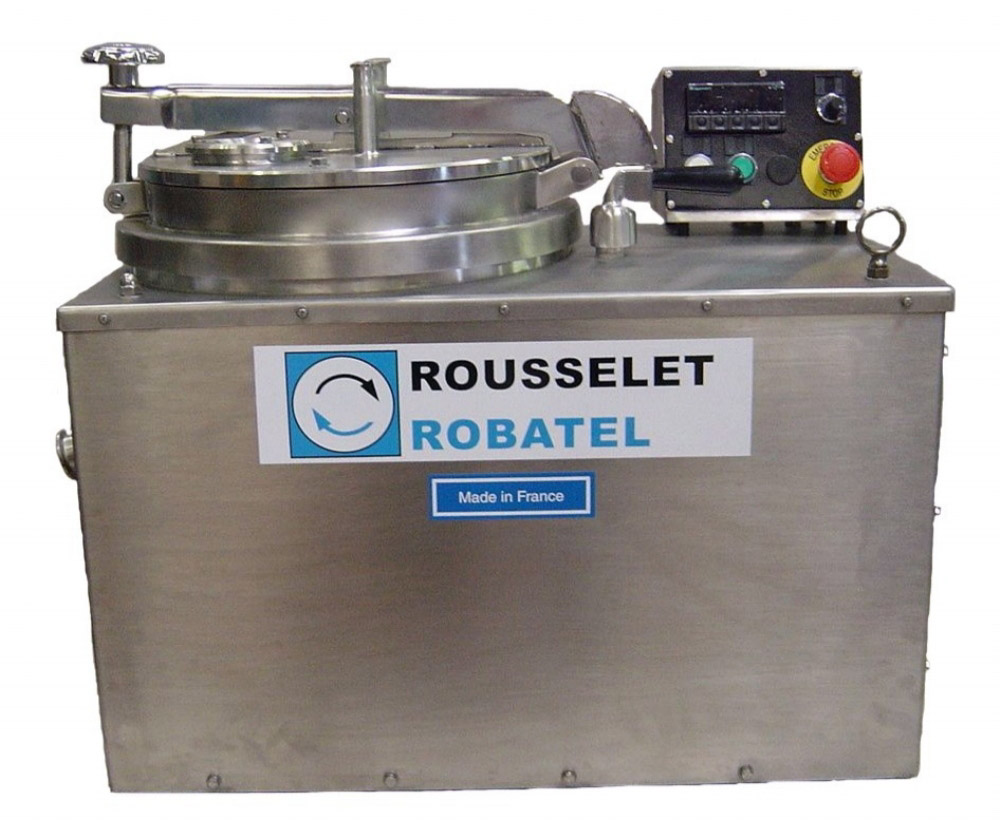

  • Usable for laboratory tests as well as for pre-production (kilolab).

  Functionability

  • Work in the most severe conditions: handling corrosive products, aggressive environments, explosive atmospheres.



  Download brochure as PDF

  Submit request

Technical data filters

Type Reel ⌀ (mm) Reelhight (mm) Useful volume (L) max. loading (kg) Filter surface (m2) max. Rotation speed max. G-number
RC 20 200 100 1,20 1,50 622 3.000 1.006
RC 30 300 150 5,50 6,85 575 3.000 1.509
RC 40 400 250 20 25 310 3.000 2.010
RC 50 500 320 34 42,50 500 2.250 1.410
RC 60 600 330 55 68,50 570 1.800 1.090



Technical data decanter

Type Reel ⌀ (mm) Reelhight (mm) Useful volume (L) max. loading (kg) max. Rotation speed max. G-number
DRC 20 200 100 1,20 1,50 3.000 1.006
DRC 30 300 150 5,50 6,85 3.000 1.509
RC 40 KG 355 300 30 30 1.000 198
DRC 40 400 280 18 22 3.500 2.740
RC 50 KG 400 400 60 60 500 56
DRC 50 500 320 40 50 2.750 2.110
RC 60 KG 500 500 80 80 400 45
DRC 60 600 350 60 75 2.600 2.270
RC 60 RIAL 600 350 50 80 500 84
RC 70 KG 600 600 150 140 400 54
DSC / DRC 70 700 350 80 100 1.850 1.335
RCPC 70 700 525 630 0 0 0
DSC / DRC 85 850 470 180 225 1.650 1.290
DSC / DRC 100 1.000 500 250 312 1.350 1.015
RCPC 100 1.000 660 630 0 0 0
DSC / DRC 120 1.200 600 360 450 1.150 885
DSC / DRC 150 1.500 620 530 662 1.000 835
