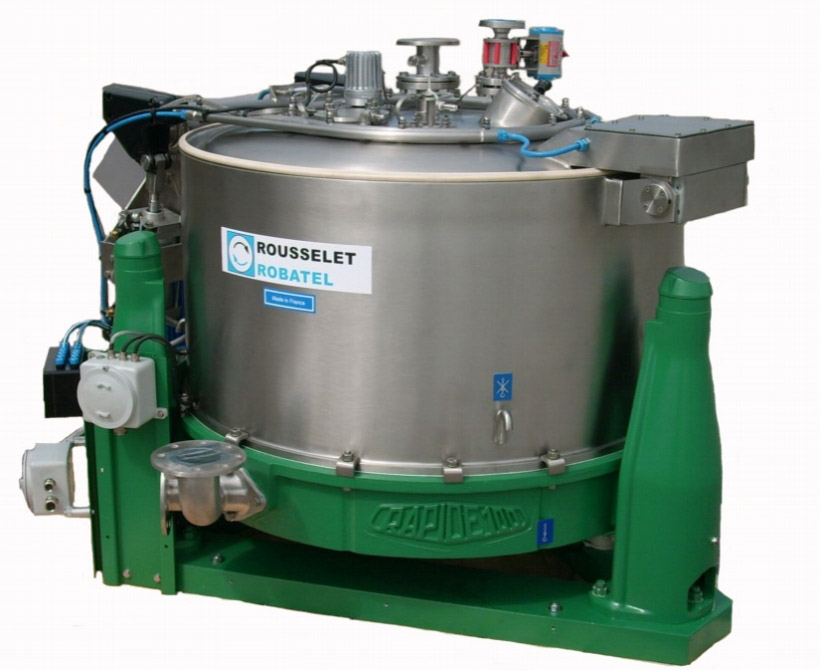

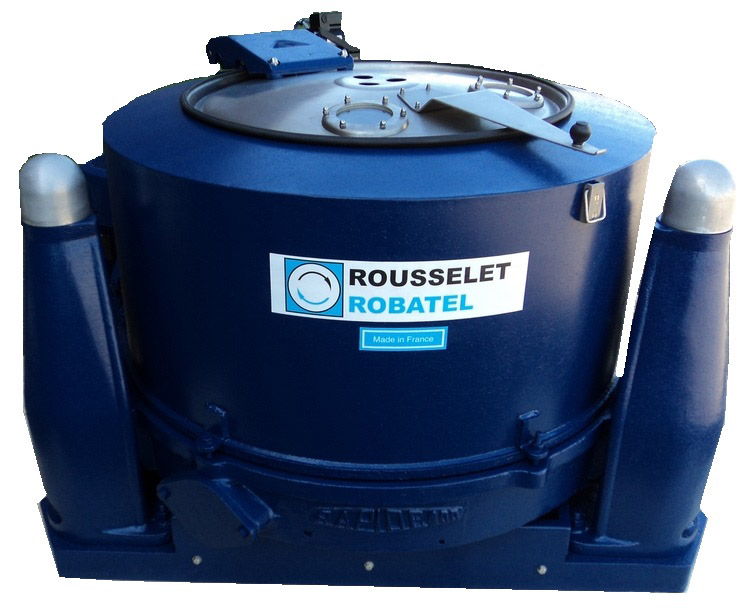

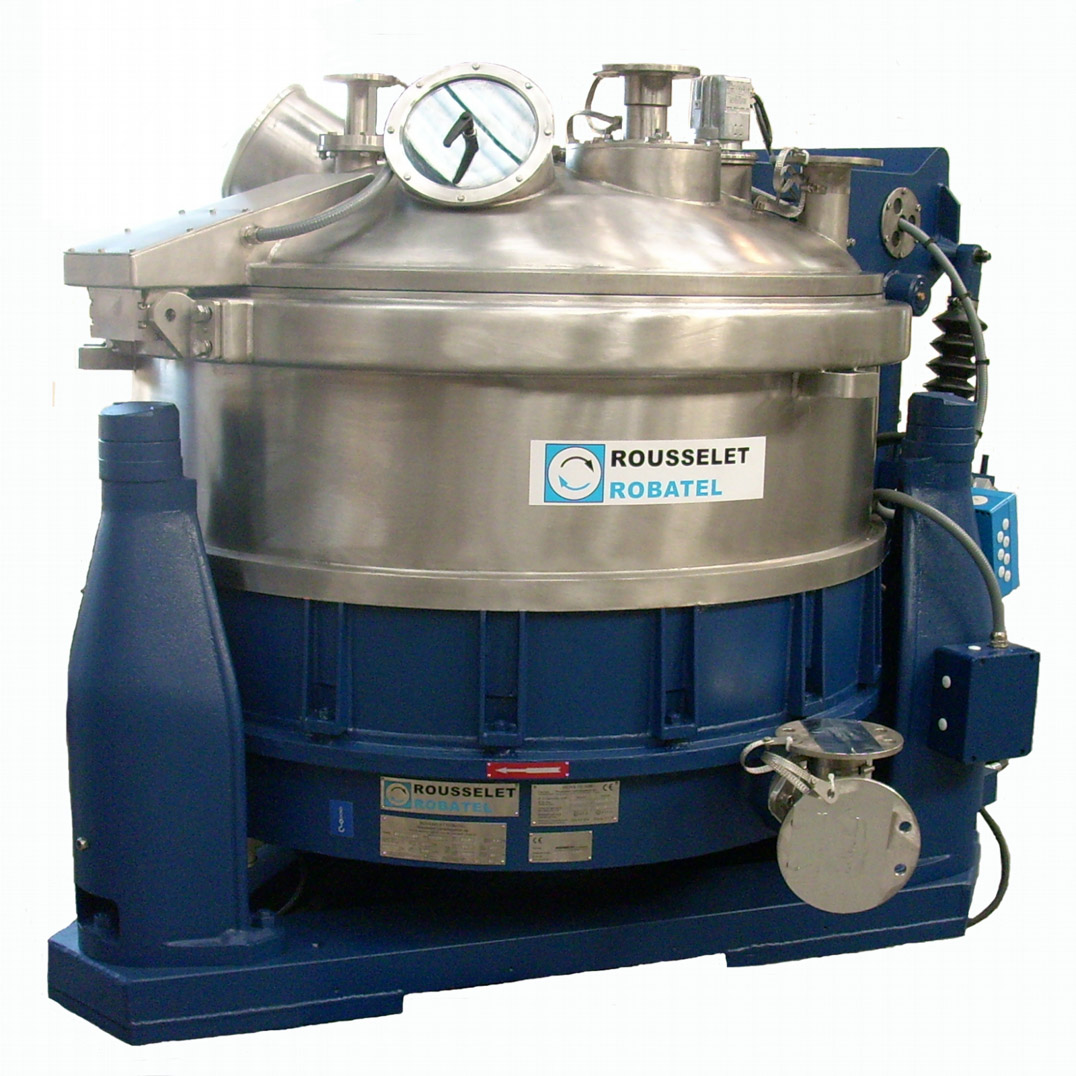

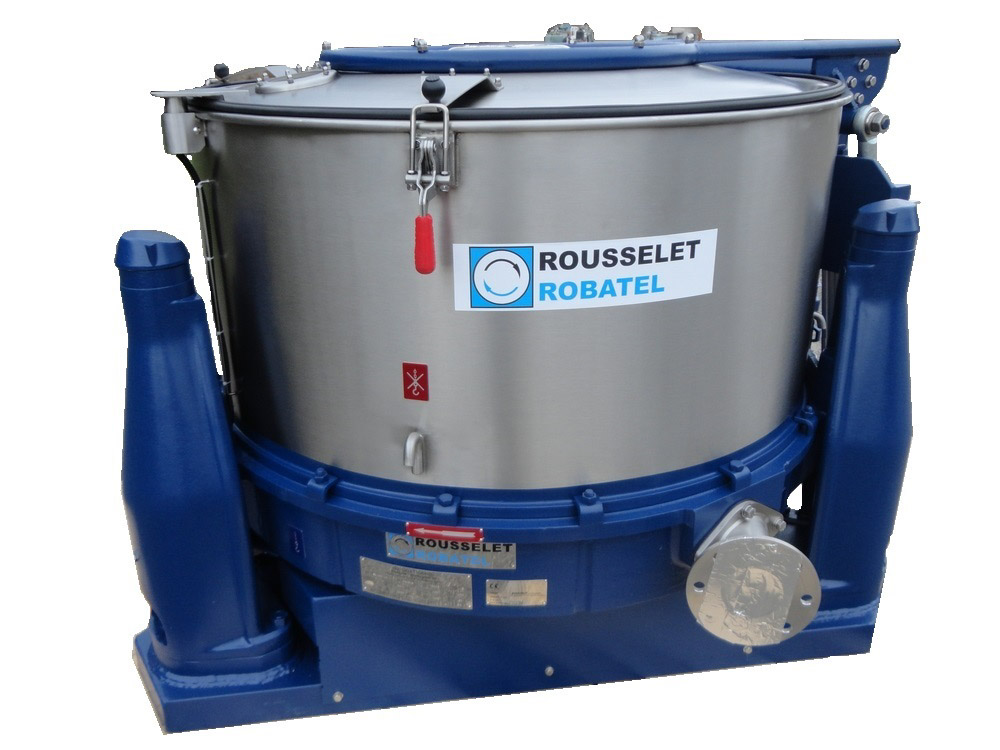

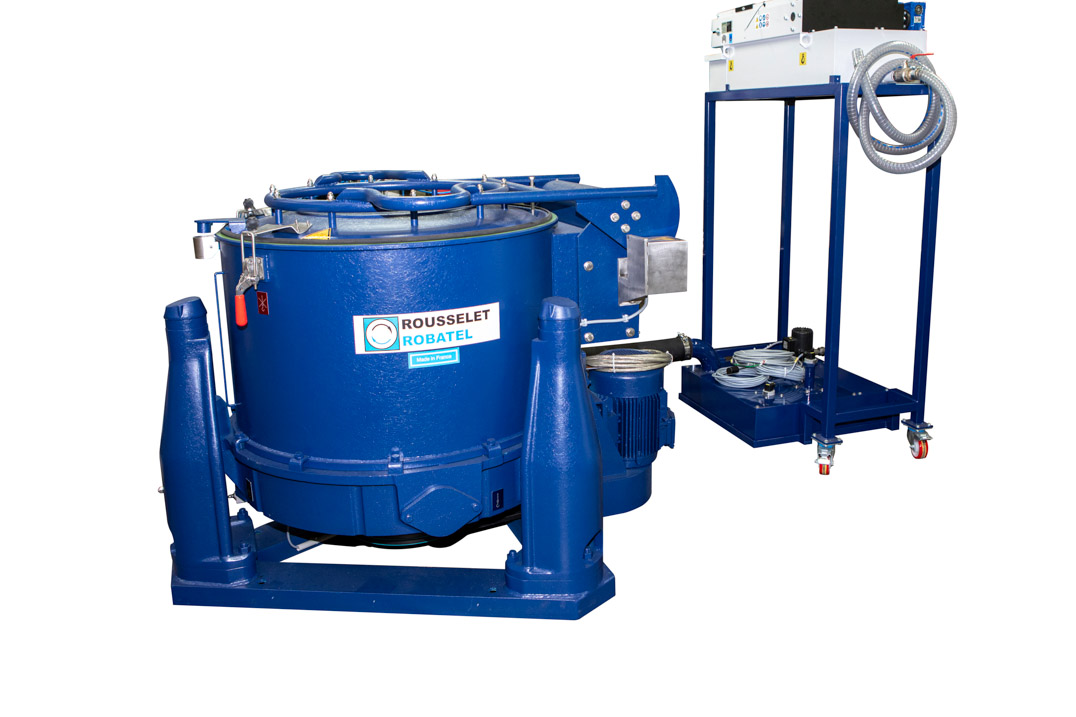

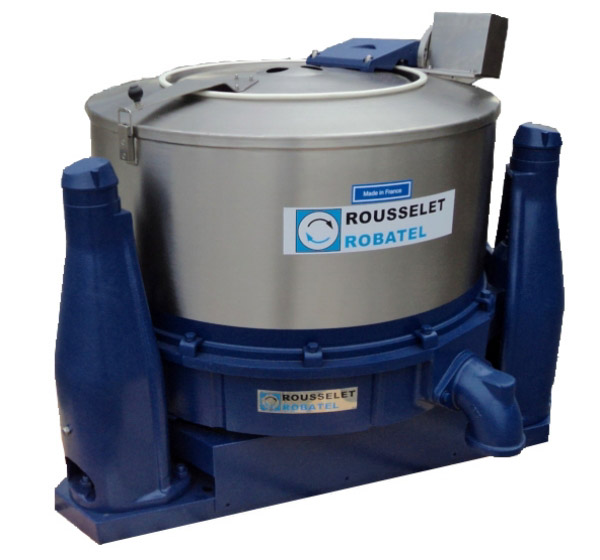

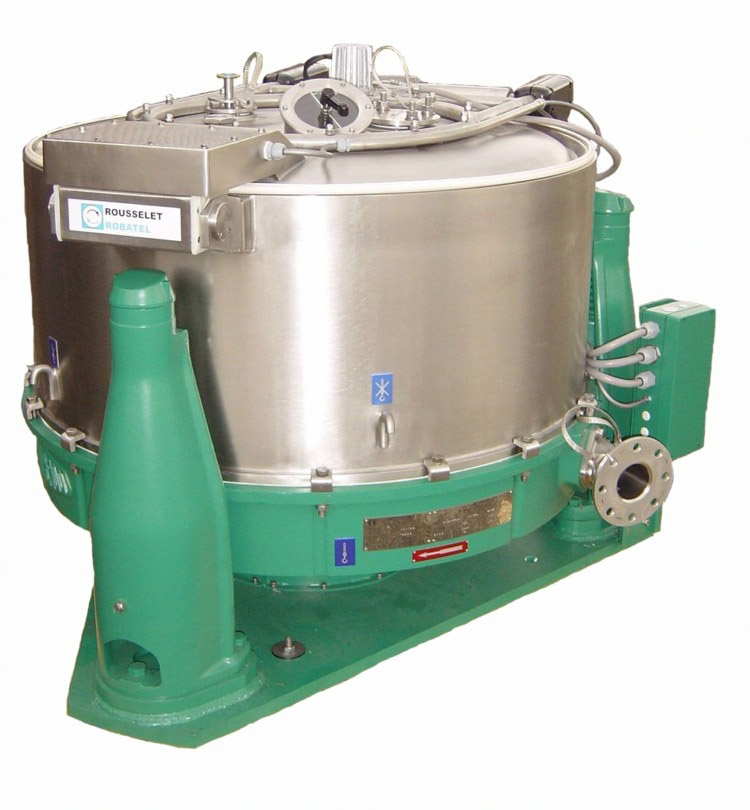

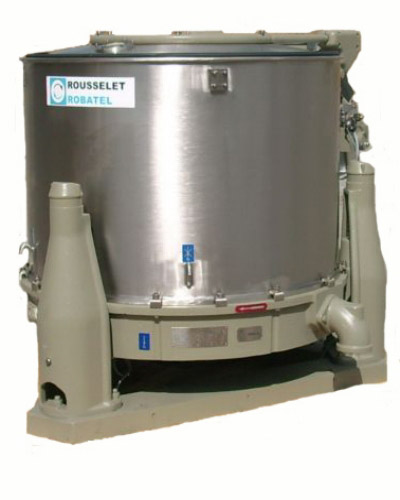

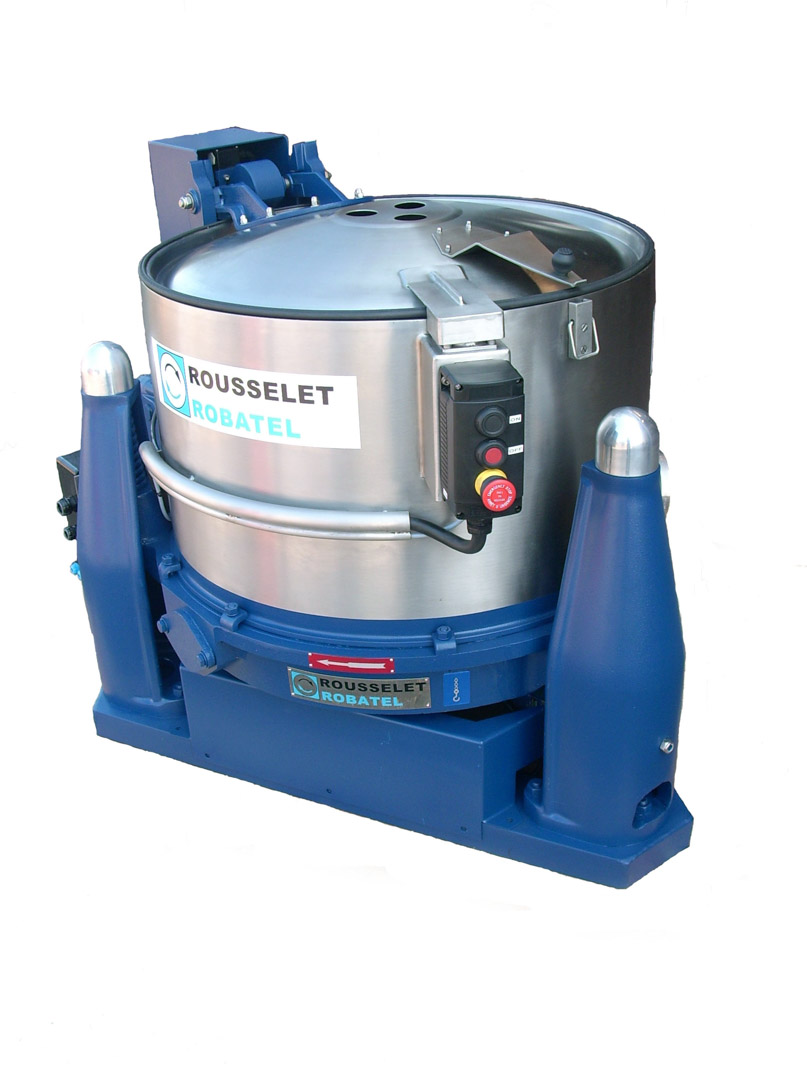

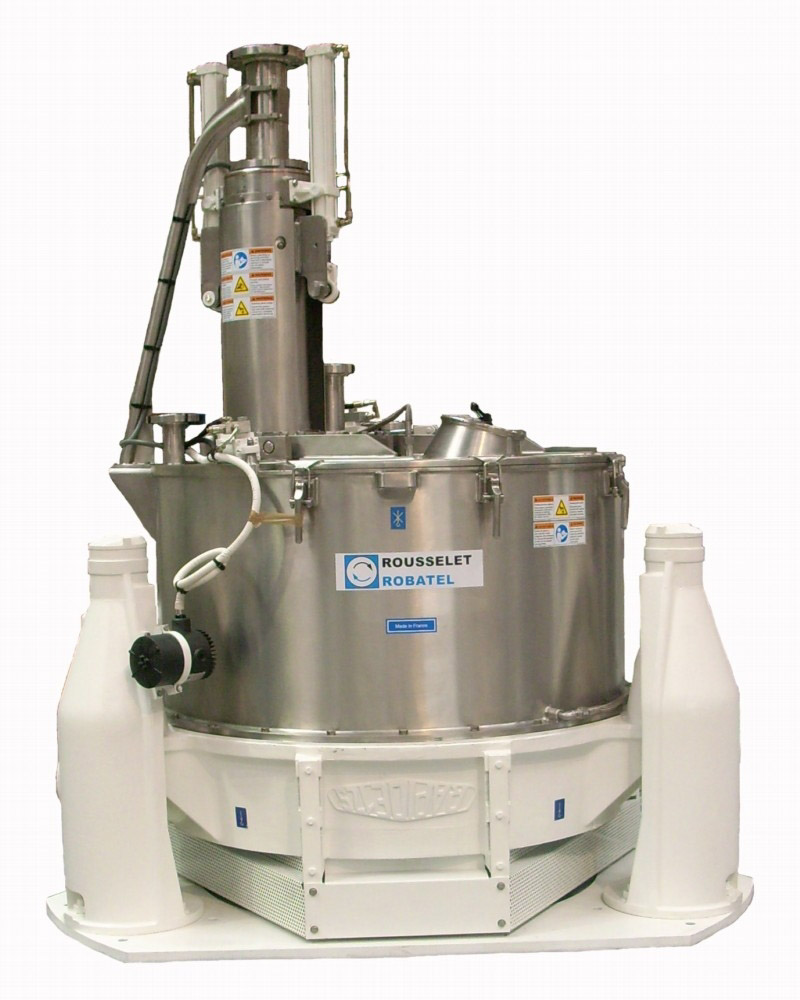

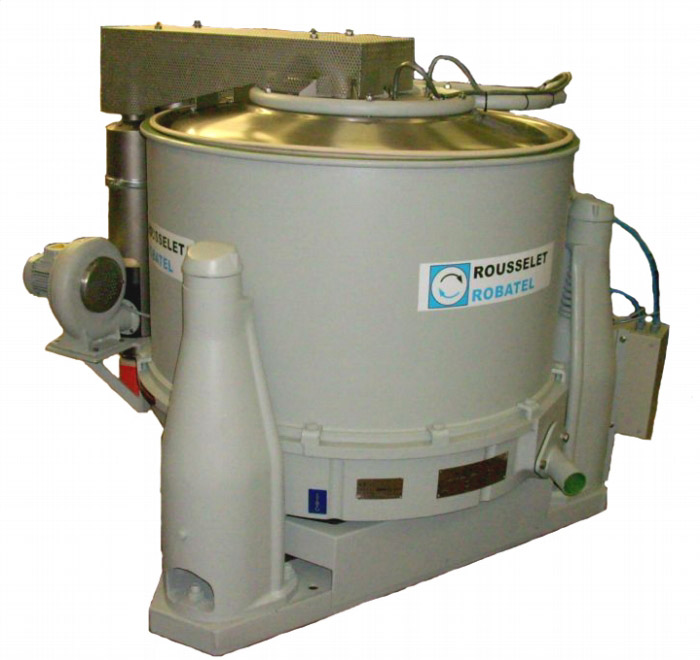

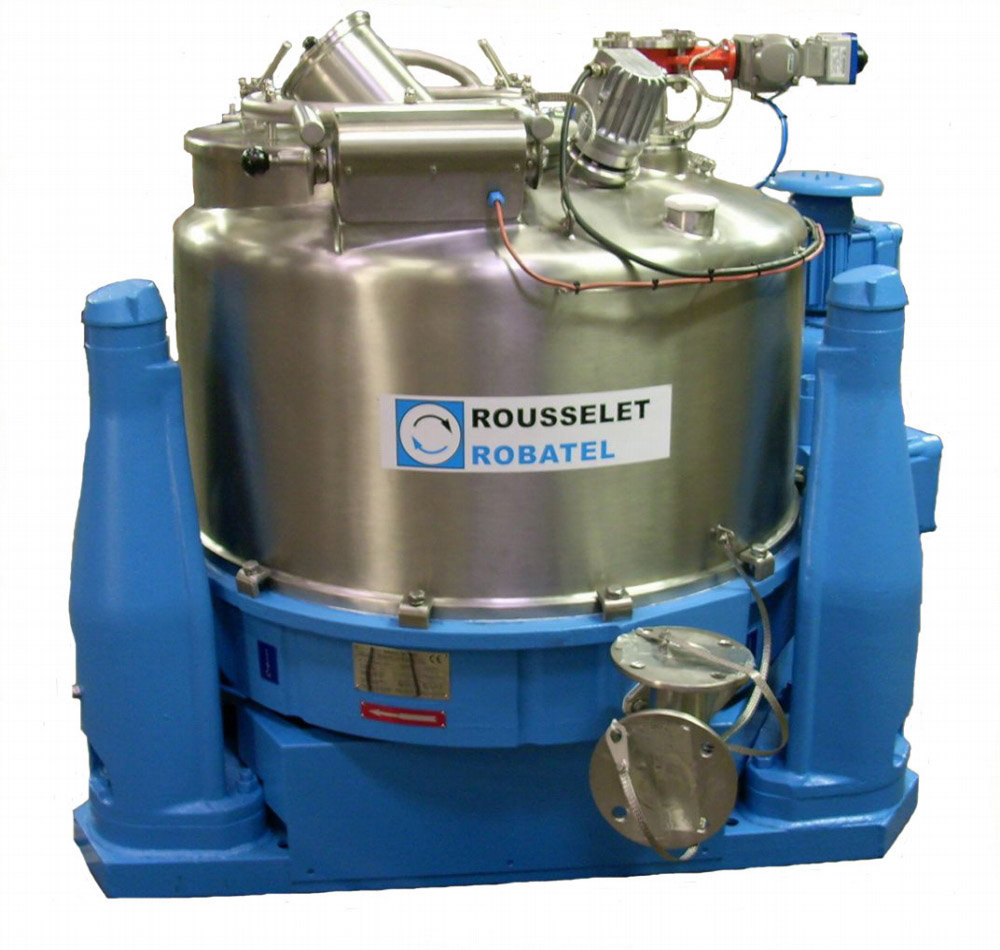

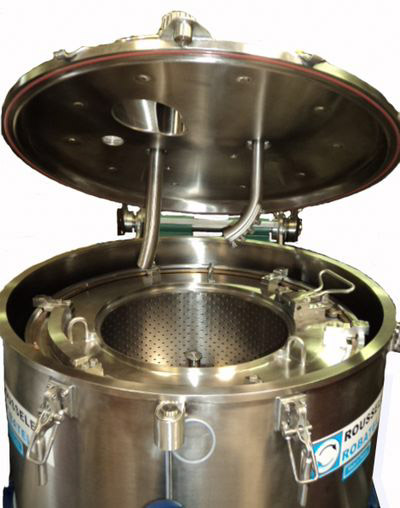

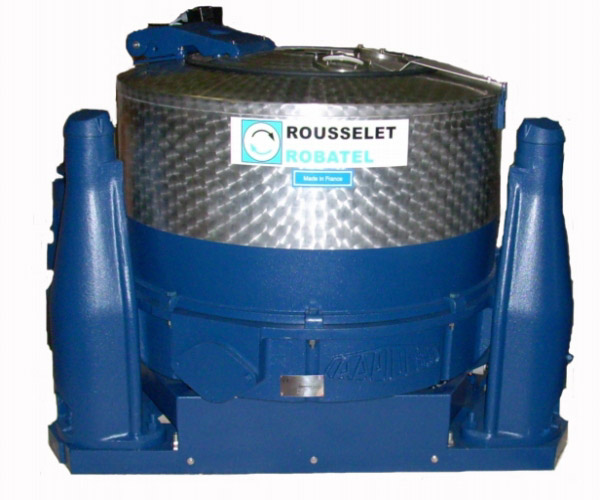

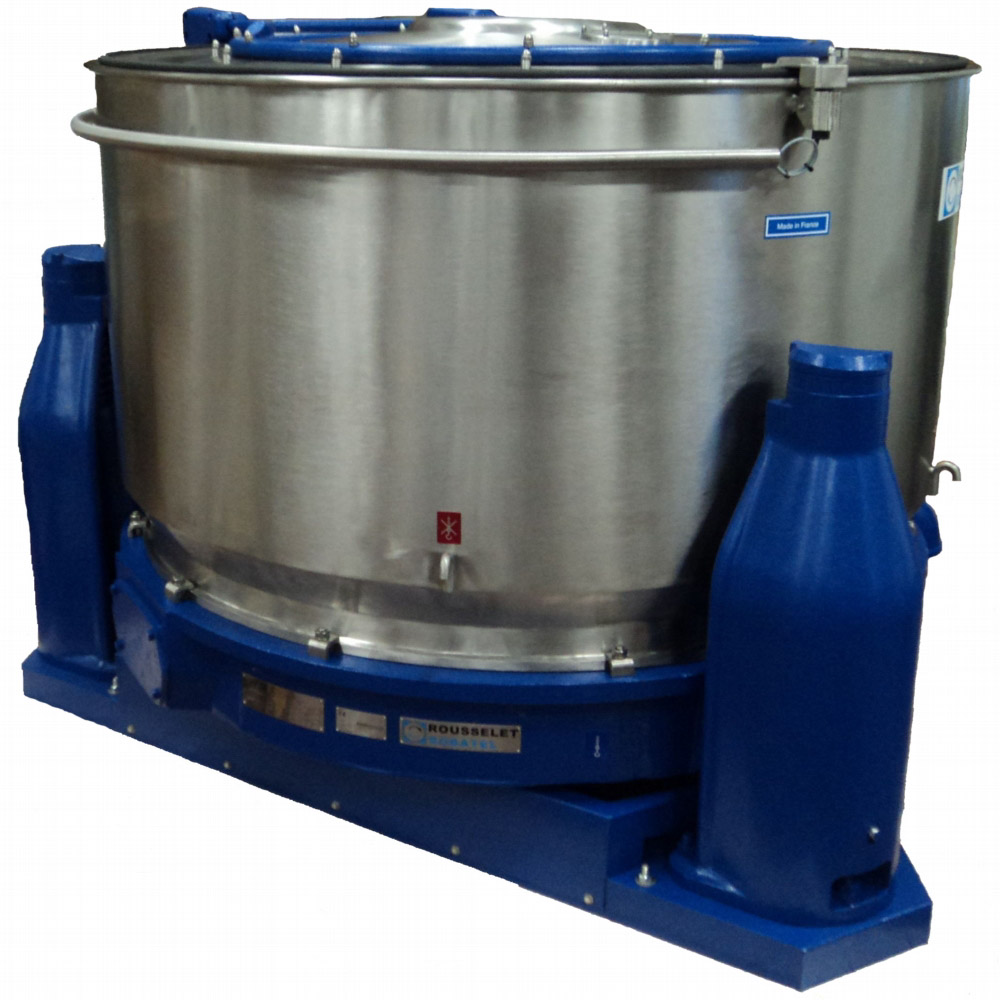

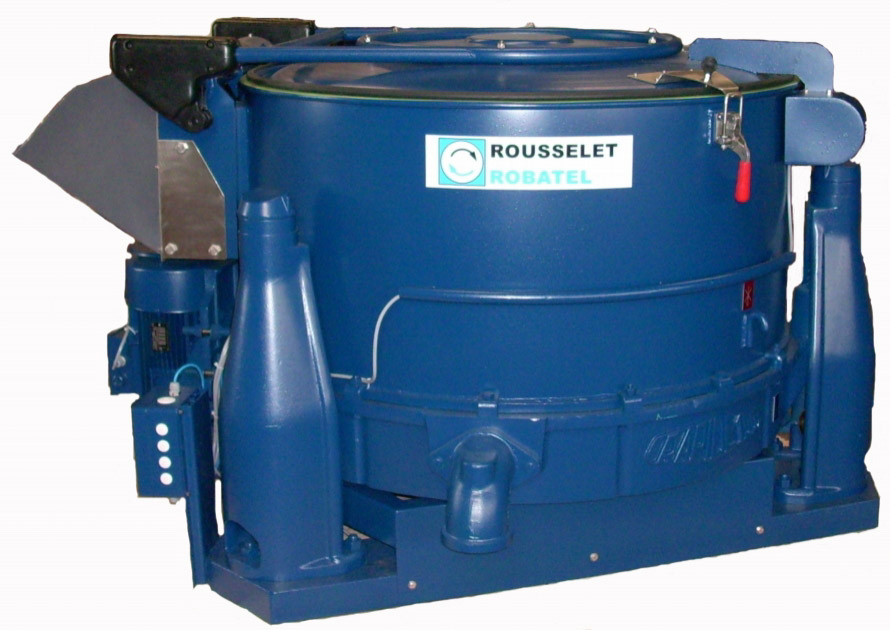

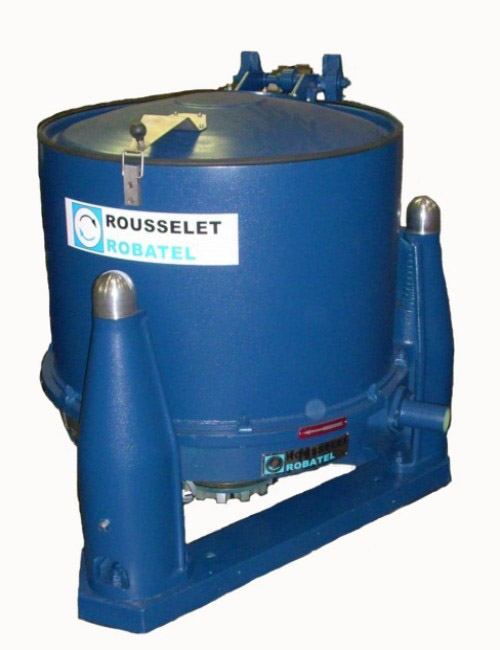

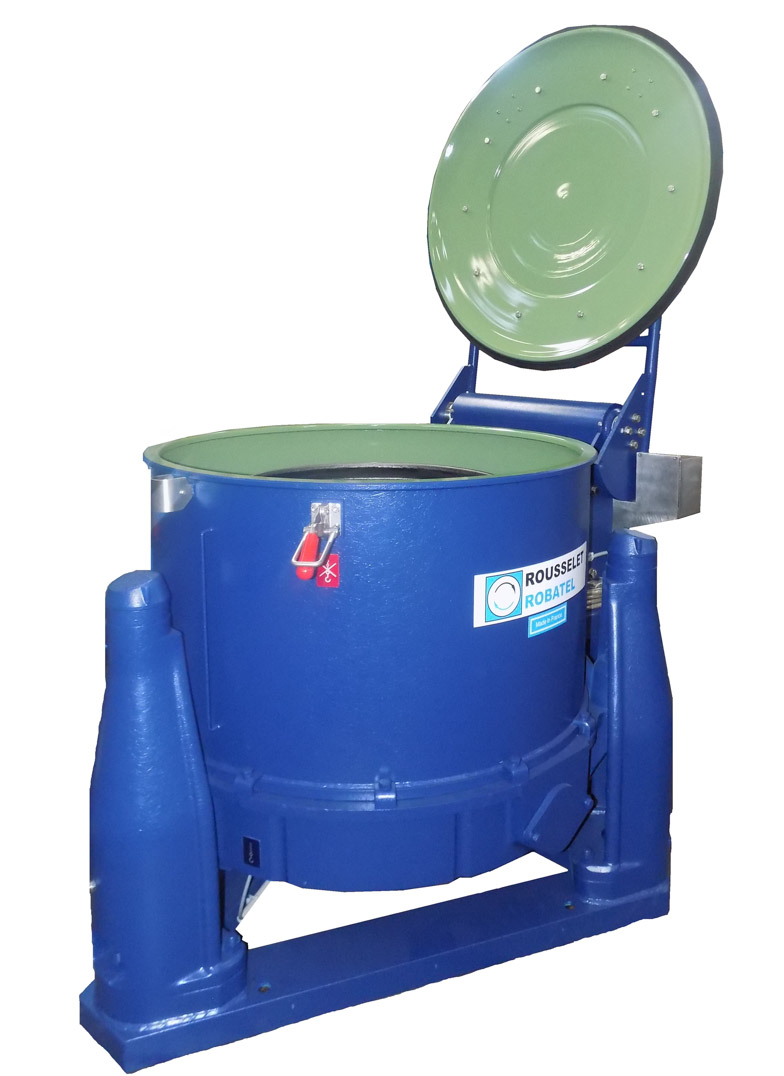

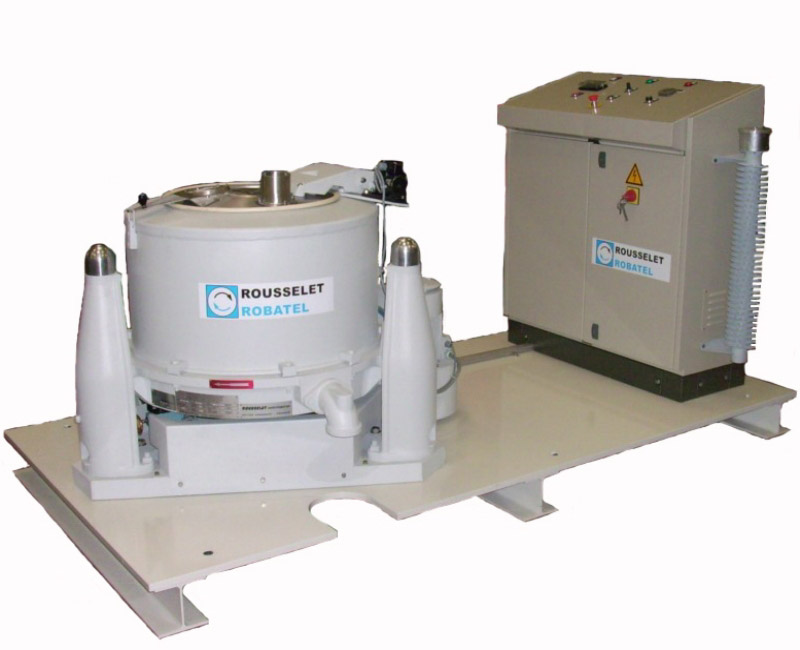

Centrifugal hydro extractors with non-removable basket

Centrifuge | Separation solid-liquid | Group: SA / SC



  Characteristics

  • Hydro-extraction of all types of textile products following washing, bleaching, dyeing, carbonizing or any wetted process.
  • Laundry, leather, paper, plastic,food industries.

  Performance

  • With different baskets/carriers, loading and unloading operations can be carried out more effectively, consequently reducing dead time resulting in improved production efficiency.

  Functionability

  • The utilisation of baskets totally suited to the products, limits or reduces product deformation.



  Download brochure as PDF

  Submit request

Technical data filters

Type Reel ⌀ (mm) Reelhight (mm) Useful volume (L) max. loading (kg) Filter surface (m2) max. Rotation speed max. G-number
SAR 40 300 250 8 9,60 236 1.500 377
SA 40 400 250 15 18 314 1.500 503
SA 50 500 280 30 37 440 1.500 628
TA60 600 330 45 54 622 1.500 754
SC 70 700 370 60 100 814 1.300 661
SC 85 850 430 100 150 1.148 1.100 574
SC 100 1.000 480 150 180 1.508 1.000 559
SC 120 1.200 545 230 276 2.054 900 543
SC 150 1.500 595 350 420 2.803 750 471
SC 200 2.000 745 700 1.000 4.679 550 338
